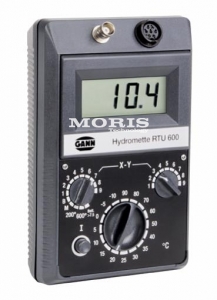

Electronic four-in-one meter Gann Hydromette RTU600
The RTU 600 is an electronic four-in-one meter designed for measurements of wood moisture, structural moisture, air humidity and temperature. The meter is equipped with a universal wood species corrector, suitable for every wood species and automatic temperature compensation from -10° - +90° C. The Hydromette is especially applicable for painters, interior constructors, parquet layers, parquet flooring industry, wood working industries, artificial drying kilns, construction companies, architects, authorized experts, housing enterprises and administrative bodies for structural engineering.
Measuring ranges:
Structural materials:
0 - 80 digits (conversion into % of dry weight by graph)
0 - 199 digits (scanning range) with probes B 50, B 60 and LB 70
0.3 - 8.5 % of dry weight by conversion table using probes B 50, B 60 and LB 70
0.3 - 6.5 % CM with probes B 50, B 60 and LB 70 by conversion table
2 - 8 % m.c. with probe MB 35 for surface moisture measurement on concrete
5 - 98 % R.H. using probe RH-T 37 EL (conversion into % of dry weight by sorption isotherms)
Wood:
4 - 100 % m.c. by using the resistance measuring method
40 - 200 % m.c. with probe MH 34 in conifers
Air humidity:
5 - 98 % R.H. depending on RF-T probe
Temperature:
-200° - +600° C depending on Pt 100 probe
-20° - +199,9° C including infrared IR 40 EL probe
- Handy quick moisture meter for fast single and series measurements
- Direct displaying of moisture content via digital LCD, resolution: 0.1 % or 0.1 digit
- The 81-step wood species correction enables very precise measurements for every individual wood species due to a variety-specfic calibration curve indicator
- Automatic compensation of wood temperature in the range of -10° - +90° C

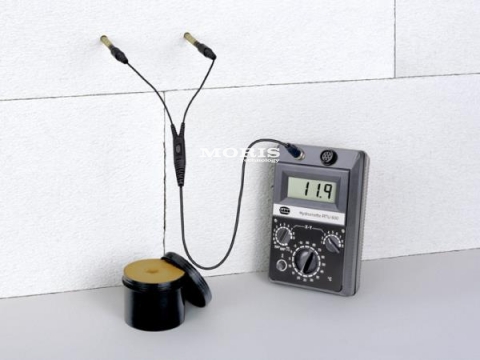

- Fast measurement of moisture in hardened building materials due to the resistance measurement method and a non-destructive indication/location of structural moisture due to the high frequency measuring principle
- Precise measurement of temperature due to Pt 100 probes in 4-conductor technology
- Fully automatic instrument setting
- Power supply by 9 V dry cell or rechargeable battery (optional equipment)
- Dimensions: 180 [L] x 115 [W] x 53 mm [H], weight approx. 390 g
- Warranty: 12 months
